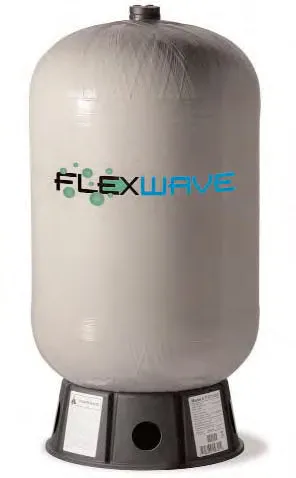

Flexwave RO 80 Gallon Water Storage Tanks use a butyl rubber diaphragm to store and deliver reverse osmosis water using air pressure within the tank.
Flexwave light commercial and residential RO composite storage vessels offer high strength, precision molded internal liner reinforced w/ continuous strand fiberglass and sealed w/ high grade epoxy resin. Flexwave RO tanks are designed with oversized copolymer polypropylene lower water chamber with 100% butyl rubber diaphragm. Lightweight, non-corrosive construction for maximum life and maximum flexibility.
Flexwave composite tanks flaunt a seamless polypropylene liner that eliminates top and bottom leak issues, as well as stainless steel reinforcing rings that back up all threaded openings. Injection molded domes increase shape consistency and strength while wetted surfaces made of high quality polypropylene add zero taste or odor.
Flexwave FWRO80 can be used as a direct replacement for ROMATE80, which we have discontinued.
FLexwave RO Stroage Tanks are Quality Tested and Certified:
- Made in USA
- Certified to WQA-NSF/ANSI 61 and WQA-NSF/ANSI 372
- All Flexwave tanks are 100% pressure tested and carry a 5 year limited warranty.
|
|
RO Tank Specifications
|
|
| Model: |
FWRO80 |
| Brand: |
Flexwave |
| Tank Volume: |
80 Gallons (51.8 Liters) |
Draw Down:
(@ 10 psi pre-charge) |
49.5 gallons @ 50 psi supply.
53.6 gallons @ 60 psi supply. |
| System Connection: |
1-1/4" MNPT |
Tank Dimensions:
|
24.2" Dia. x 51.8"H
(92.4 cm x 130.8 cm) |
| Tank Weight (empty): |
65 lbs (29.5 kg) |
| Max. Working Pressure: |
125 psi |
| Max. Working Temperature: |
120°F (48.8°C) |
| Pre-Charge (adjustable): |
20 psi |
Shell:
|
Copolymer polypropylene tank reinforced with fiberglass and sealed with epoxy resin. |
| Water Chamber: |
100% butyl rubber diaphragm w/ copolymer polypropylene lower chamber |
| Connection: |
Male socket, rigid sch. 80 PVC |
| Air Valve: |
Brass with rubber o-ring seal |
Replaces Models:
|
31054
34684
CH34473
RO80, RO-80, RO 80
ROMATE-80
S-PR80SF |
Compatible With:
|
Aqua-Pure 3M Purification 55984-09
Everpure DEV3115-73
Everpure DEV331573
Everpure EV3115-73
Everpure EV311573 |
|
|
|
